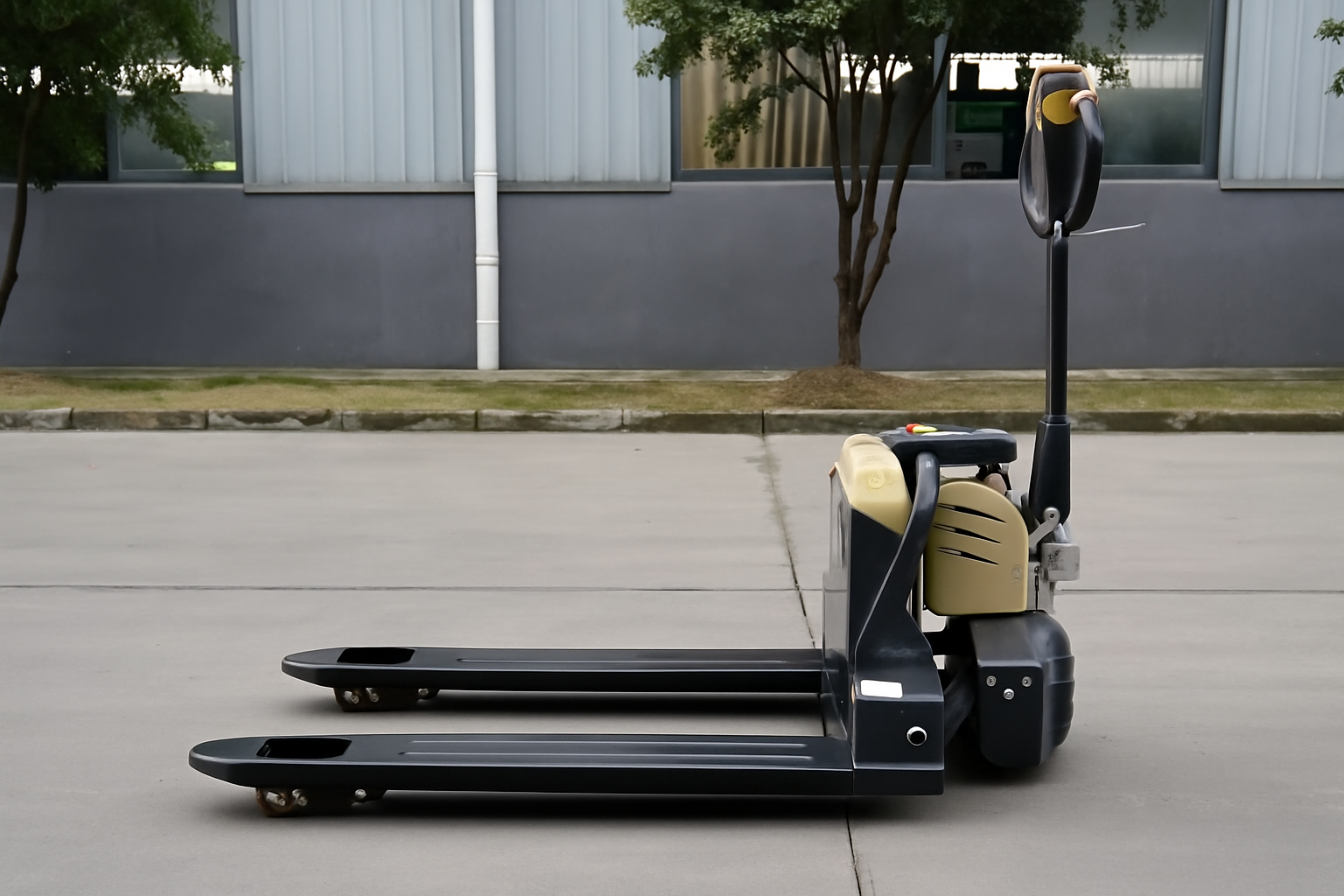

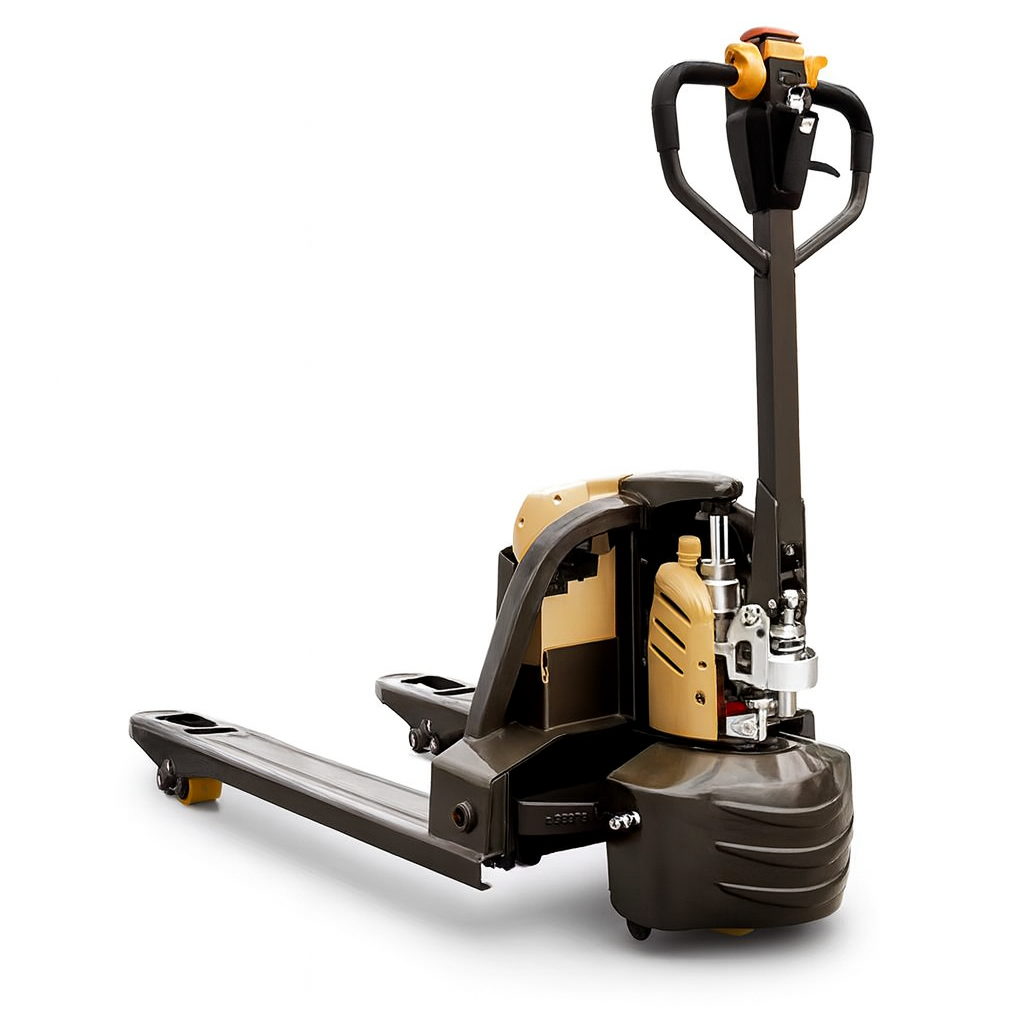

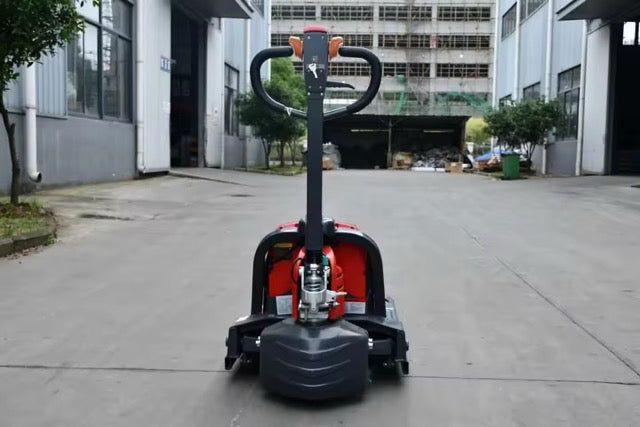

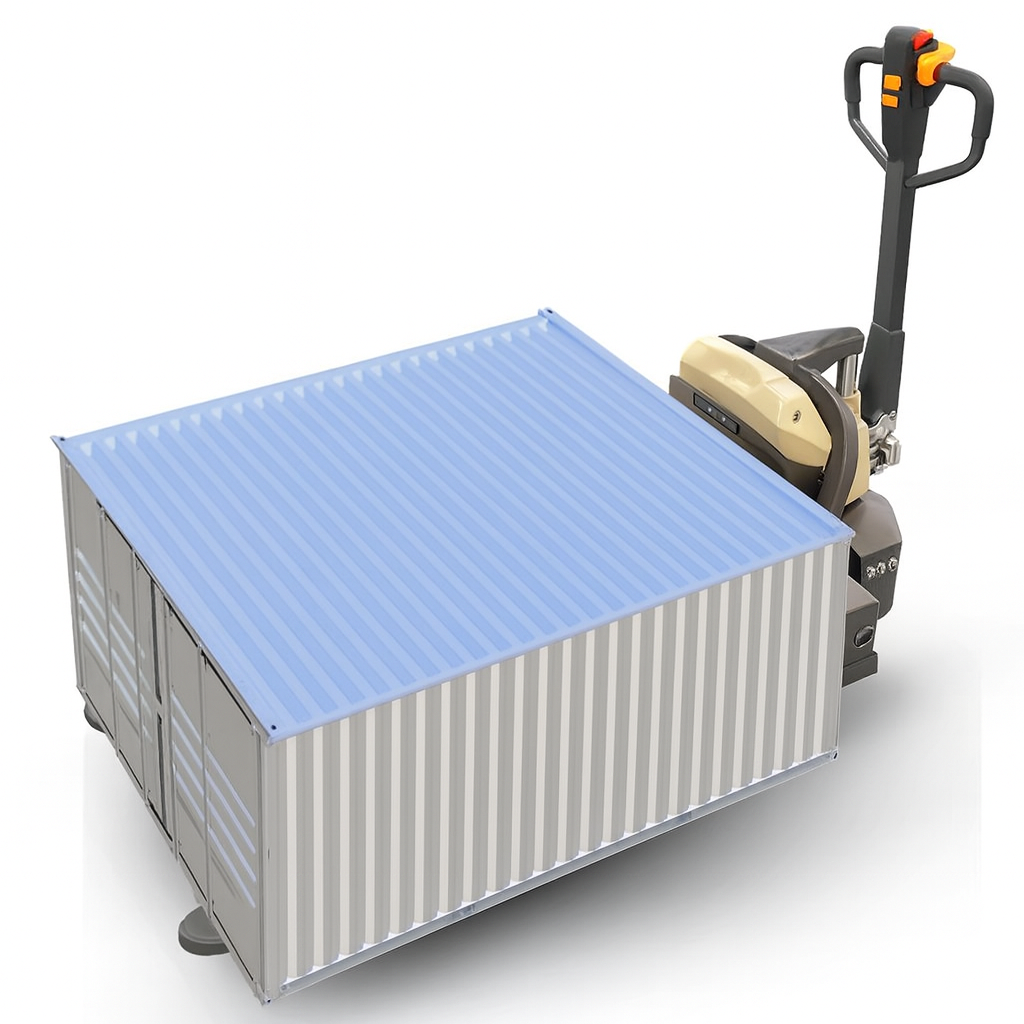

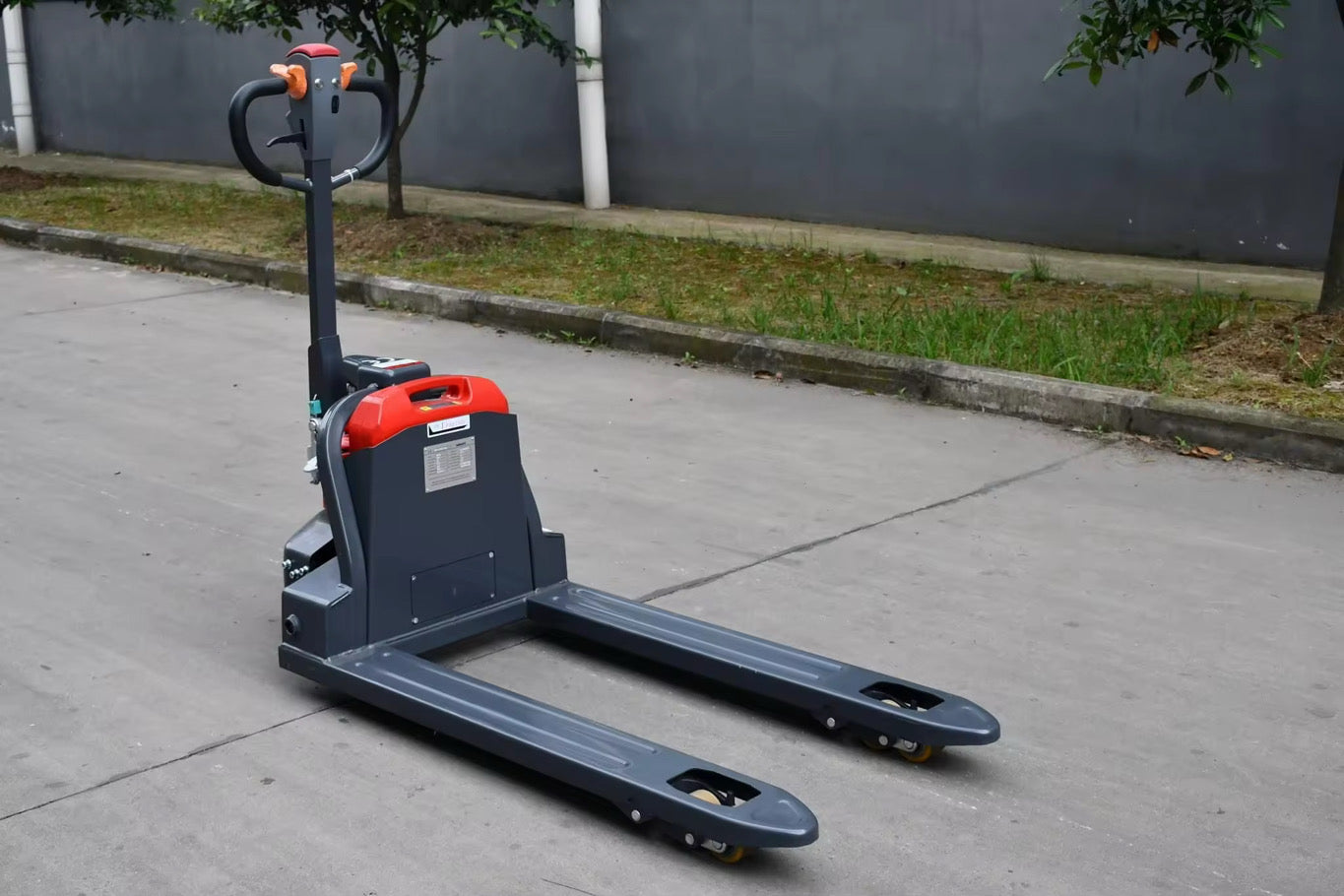

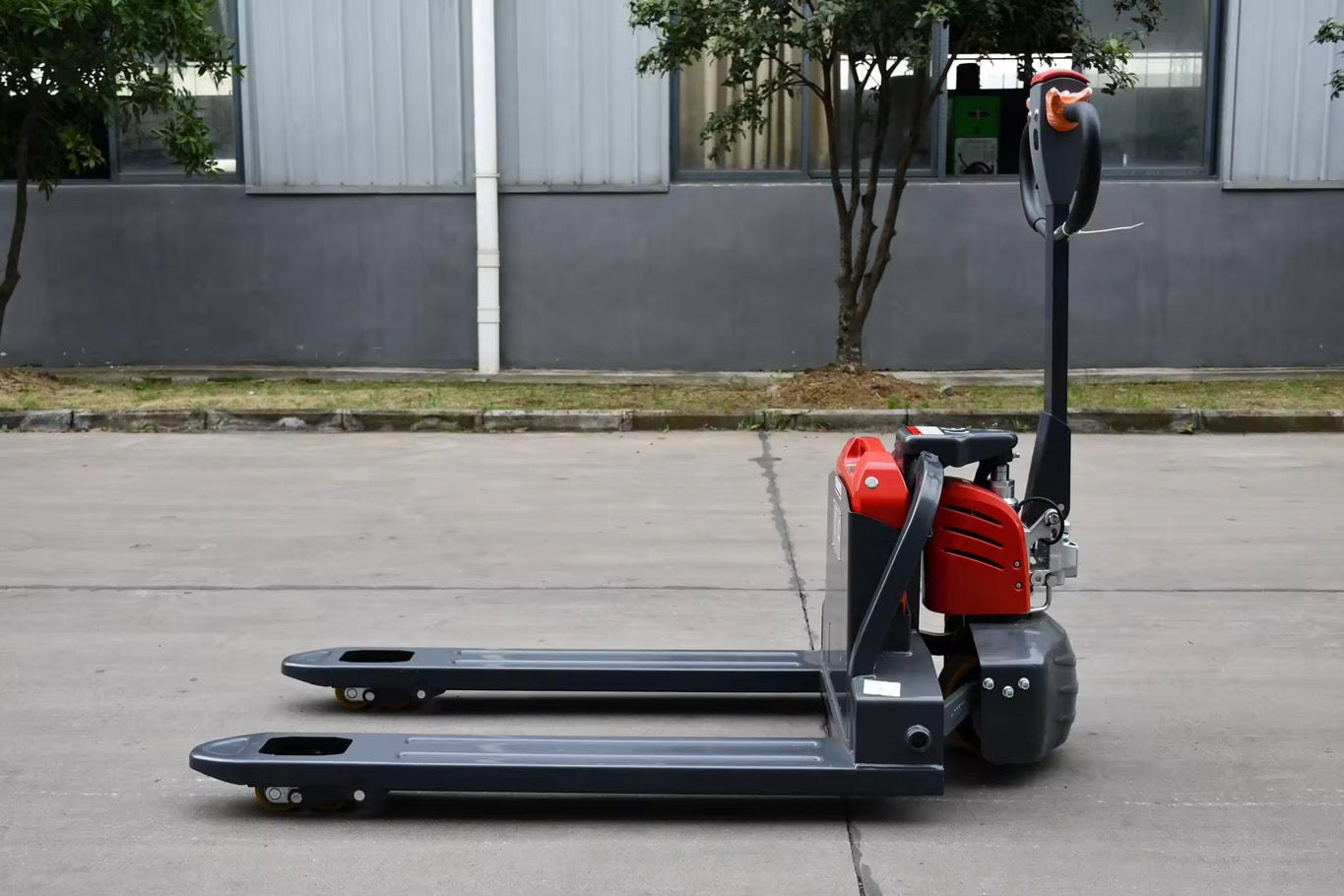

Brabus Lift-Jet™ E15 | Electric Pallet Jack (3300 lb Capacity) Lithium Battery

• Heavy-Duty Capacity: Rated for 3300 lb / 1500 kg, perfect for industrial and commercial use.
• Advanced Lithium Power: 24 V 20 Ah battery for reliable, energy-efficient performance.
• Removable Battery: Swap or charge anywhere for continuous operation.
• Ergonomic Handle & Controls: Designed for comfort, precision, and operator safety.
• Pinwheel Maneuvering: Navigate narrow aisles and tight corners with ease.
• Durable Steel Frame: Built tough for long-term warehouse and factory use.
• Polyurethane Wheels: Quiet, stable, and floor-friendly.
• Ramp Climbing: Handles 5–10 % grades effortlessly.
• Low-Noise Operation: Operates below 70 dB(A) for a quieter workspace.
• 110 V Smart Charger: Quick, simple charging with any standard outlet.

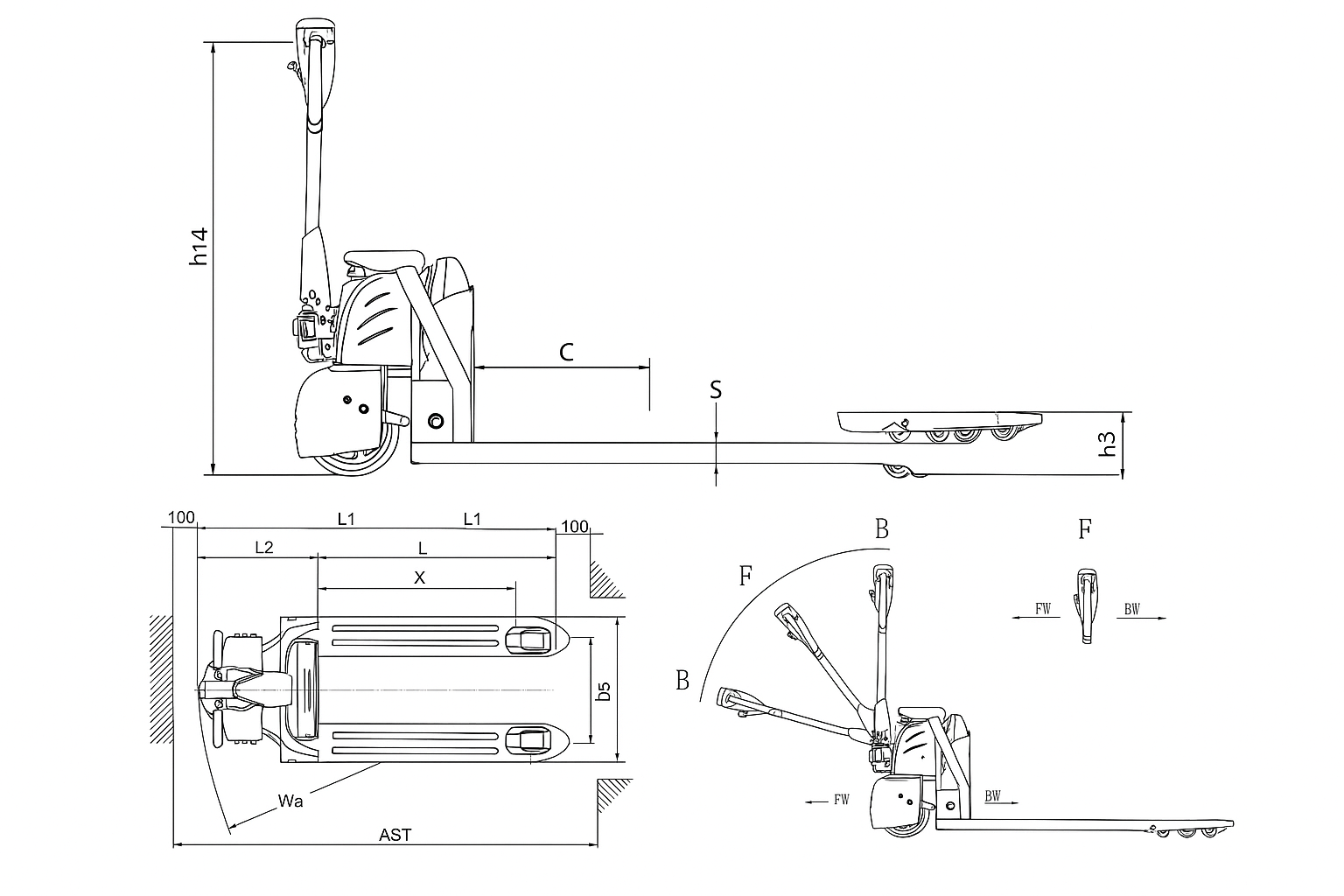

• Driving Wheel Size: Ø 210 × 70 mm
• Balance Wheel Size: Ø 80 × 60 mm
• Fork Dimensions: 50 × 150 × 1150 mm
• Overall Width: 550 / 685 mm
• Overall Length: 1603 mm
• Turning Radius: 1398 mm
• Lift Height: 200 mm
• Ground Clearance: 35 mm
• Driving Speed (Load/No Load): 4.2 / 4.5 km/h
• Gradeability (Load/No Load): 5 % / 10 %
• Brake Type: Electromagnetic
• Noise Level: ≤ 70 dB(A)
• Steering System: Manual
• Frame Construction: Reinforced steel with ergonomic handle

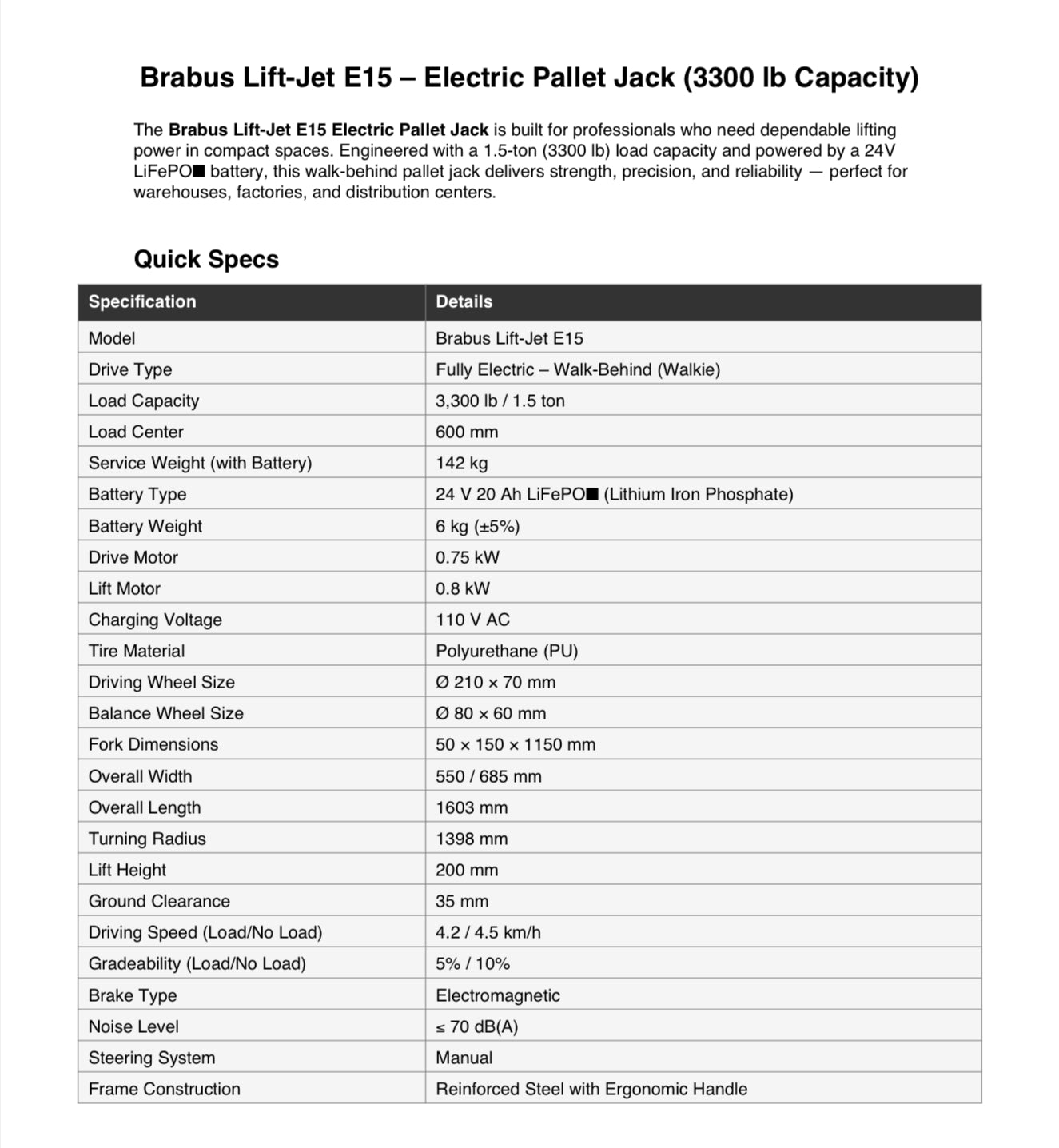

Model: Lift-Jet E15

Drive Type: Fully Electric – Walk-Behind (Walkie)

Load Capacity: 3,300 lb / 1.5 ton

Load Center: 600 mm

Service Weight (with Battery): 142 kg

Battery Type: 24 V 20 Ah LiFePO₄ (Lithium Iron Phosphate)

Battery Weight: 6 kg (±5%)

Drive Motor: 0.75 kW

Lift Motor: 0.8 kW

Charging Voltage: 110 V AC

Tire Material: Polyurethane (PU)
