Brabus Gutter-Jet™ | 5” K-Profile Portable Gutter Machine

Brabus Gutter-Jet™ | 5” K-Profile Portable Gutter Machine

Precision. Power. Portability.

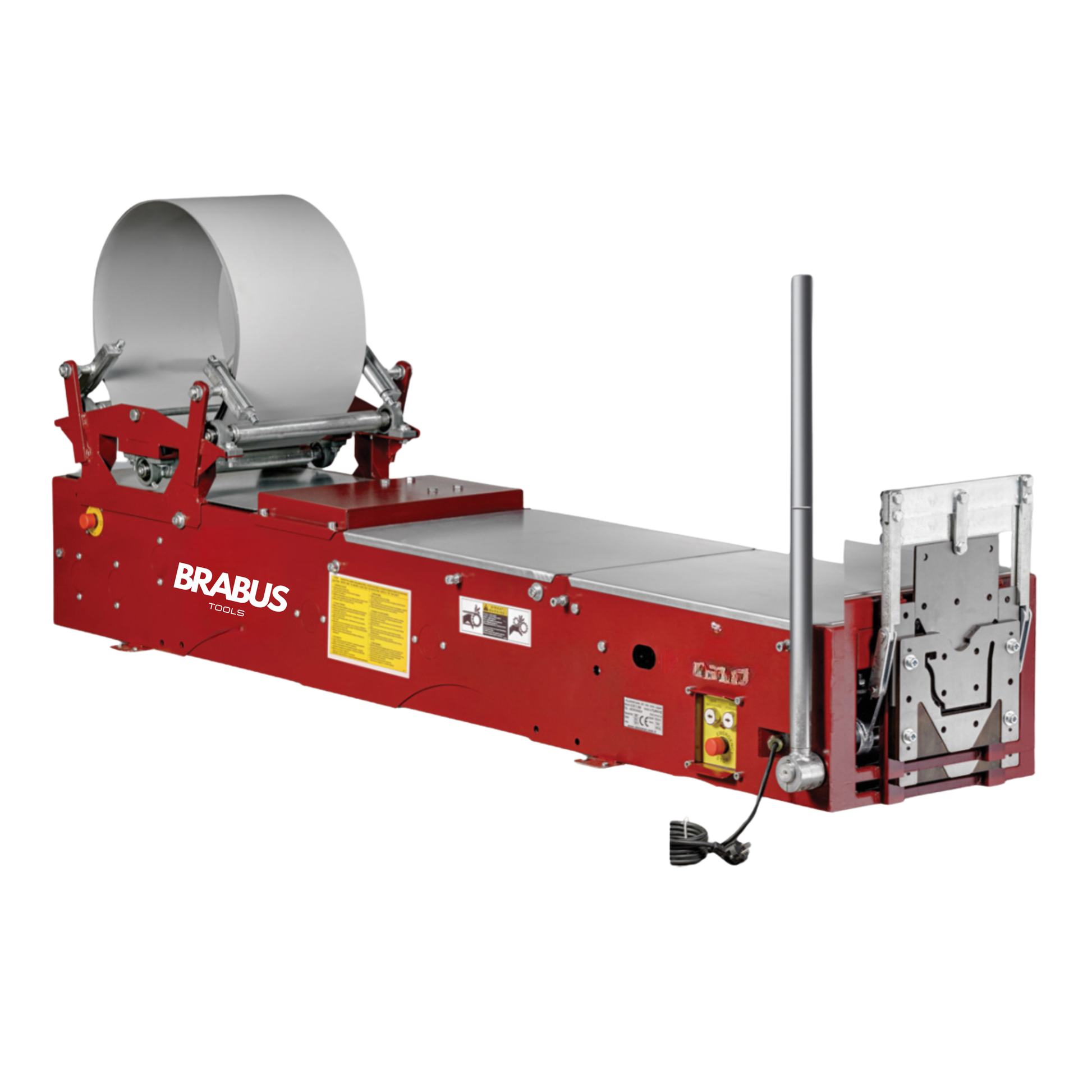

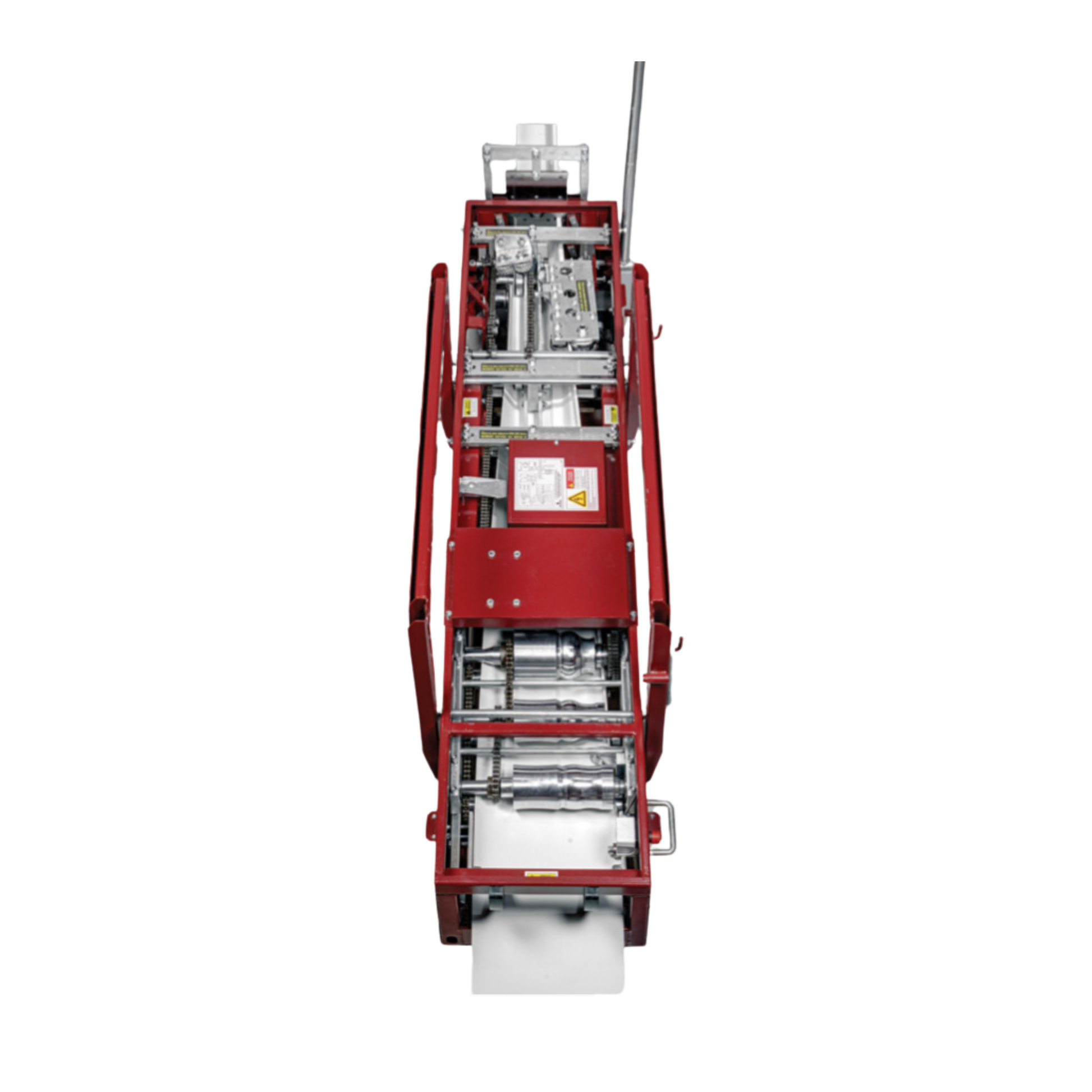

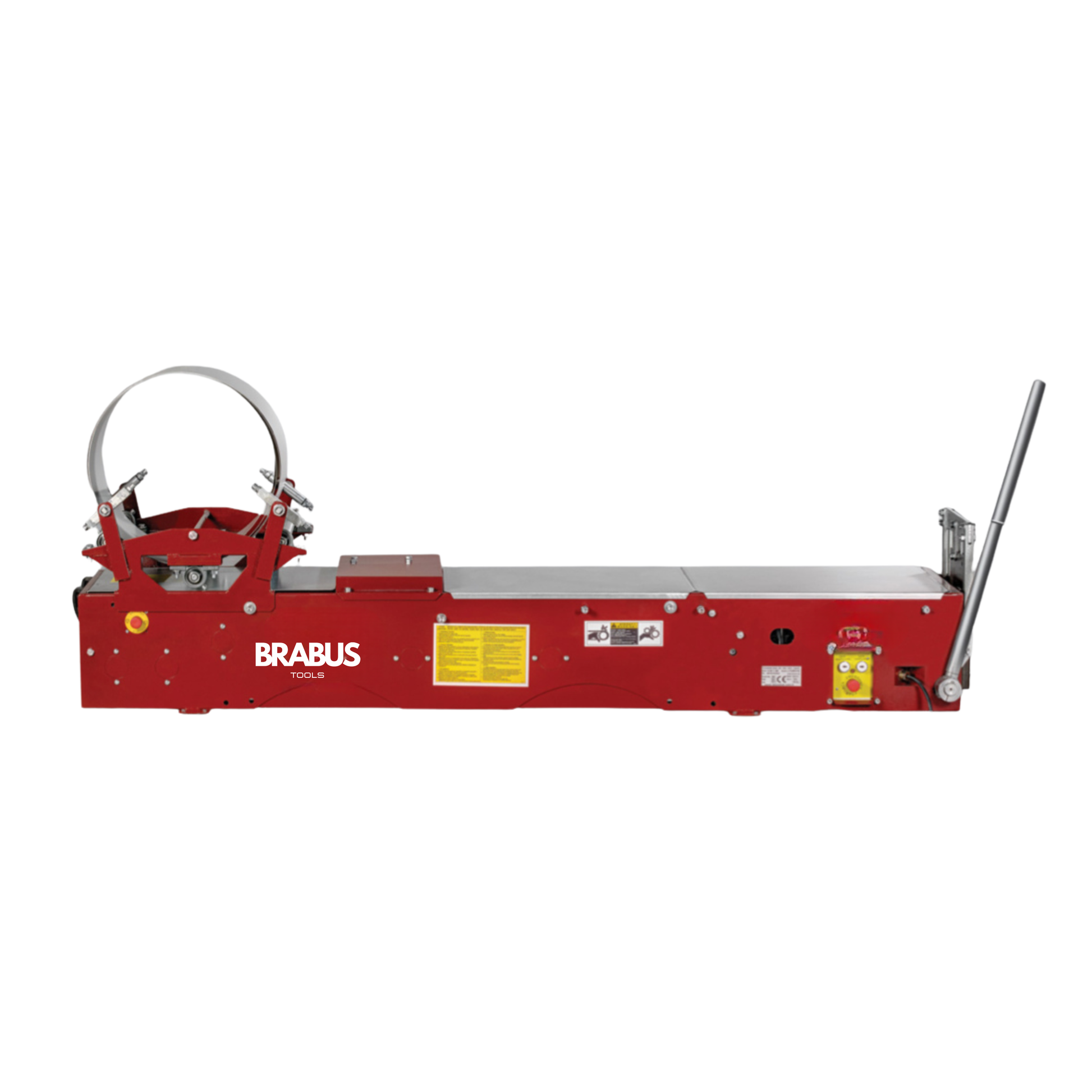

The Brabus Gutter-Jet™ is a high-performance 5-inch K-style gutter machine engineered for contractors who demand professional results on every job site. Combining strength, accuracy, and mobility, it delivers seamless gutter forming with the reliability Brabus Tools is known for.

Key Features

• 5” K-Profile Output – Produces the most popular residential gutter style with consistent, smooth forming.
• Includes Coil Cradle and Guillotine Shear – Comes equipped with a heavy-duty coil cradle for easy loading and a front-mounted guillotine shear for clean, precise cuts.
• 110V Electric Powered – Operates on a standard North American outlet; no special wiring or setup required.
• Material Compatibility – Optimized for 0.7 mm (approximately 24-gauge) painted aluminum, ensuring accurate shaping without distortion.
• Portable and Compact – Built for on-site performance and easy transport between projects.
• Heavy-Duty Construction – Reinforced frame and roller system designed for long-term professional use.
• Quick-Feed System – Smooth coil alignment and feed mechanism for faster production and reduced material waste.
• Optional Add-Ons – Can be paired with Brabus stands or reel systems for a complete job-site setup.

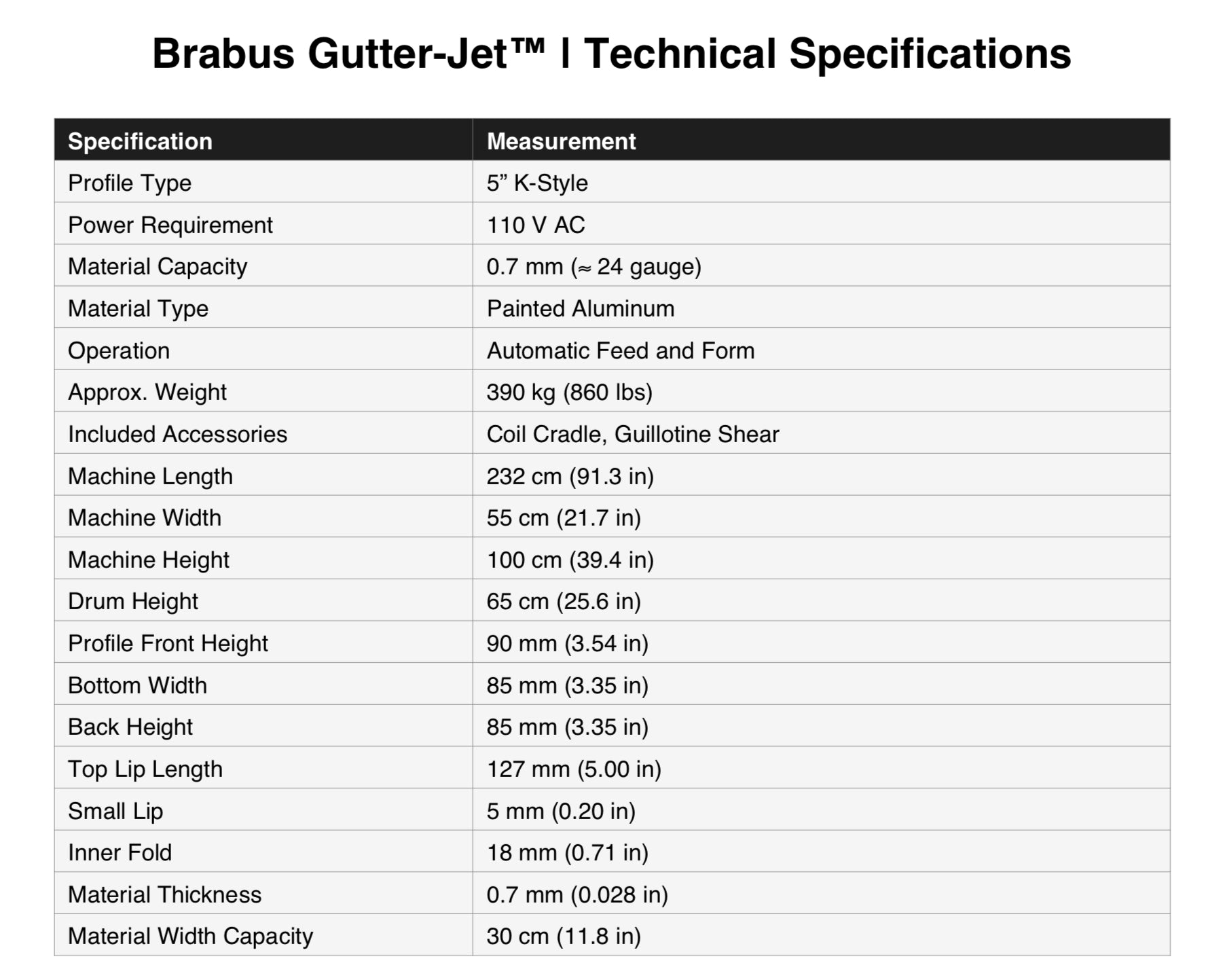

Technical Specifications

• Profile Type: 5” K-Style
• Power Requirement: 110V Electric
• Material Capacity: Up to 0.7 mm Painted Aluminum
• Operation: Automatic Feed and Form
• Approximate Weight: 390 kg
• Included Accessories: Coil Cradle, Guillotine Shear

Dimensions (Approx.)

• Length: 232 cm → 91.3 inches
• Width: 55 cm → 21.7 inches
• Height: 100 cm → 39.4 inches
• Drum Height (excluded in some specs): 65 cm → 25.6 inches

Profile Dimensions (5” K-Style Shape)

• Front Face Height: 90 mm → 3.54 inches
• Bottom Width: 85 mm → 3.35 inches
• Back Height: 85 mm → 3.35 inches
• Top Lip Length: 127 mm → 5.00 inches
• Small Lip: 15 mm → 0.59 inches
• Inner Fold: 18 mm → 0.71 inches
• Material Thickness Capacity: 0.40 – 0.60 mm → 0.016 – 0.024 inches
• Material Width Capacity: 30 cm → 11.8 inches
